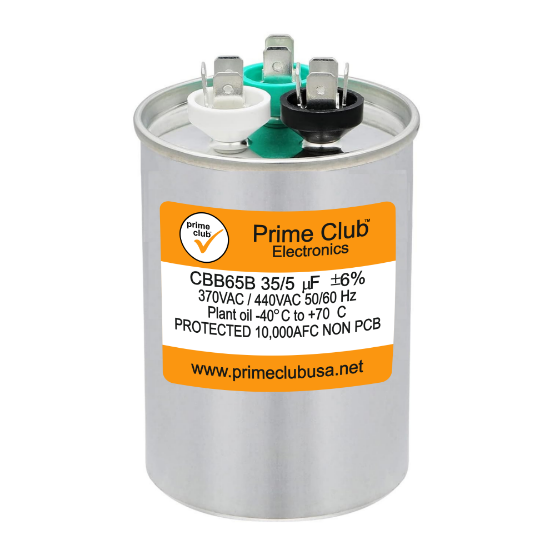

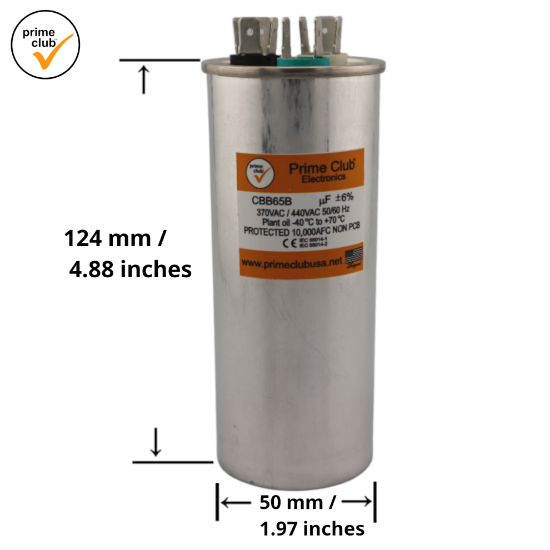

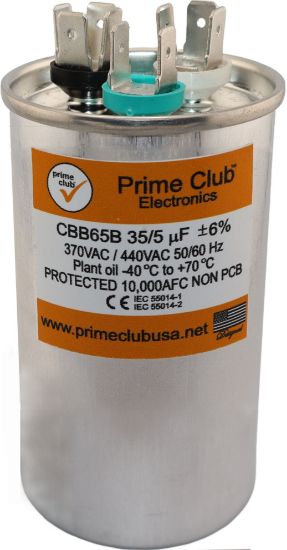

This capacitor is used for start-up and operation of AC motors, such as Motor Run or Heat Pump Air Conditioner or Condenser Straight Cool.It is small in size, lightweight, heat resisting and anti-explosion. Model: CBB65（Universal model). Case Material: unpainted aluminum case. Dielectric Material: metallized polypropylene film. Available Capacitance: 35+5uf. Capacitance Tolerance:±6%. Operating temperature: -40℃ to +70℃/-40℉ to +158℉. Frequency:50/60 Hz. Operating Life:60,000 hours with 94% survival. Dissipation Factor:0.1% maximum. A PRIME CLUB ac capacitor can be used in place of a 370 volt capacitor and a 440 volt capacitor. A capacitor is an electric component that temporarily stores an electrical charge. A dual "run capacitor" supports two electric motors, such as in large air conditioner or heat pump units, with both a fan motor and a compressor motor. It saves space by combining two physical capacitors into one case. The dual capacitor has three terminals labeled C, FAN, and HERM, Herm/H for the compressor motor, Fan/F for the fan, and C for the common line.
Compatibe Part Numbers:97F9834; Z97F9834; Z97F9848; 97F9848BZ2; 97F9848BZ3; 97F9848BX; 97F9848; 97F9848S; C3DR355; C3355R; C4355R; 97F9899; Z97F9899; PB350Z050S370DABX; 620745; 620660; 1172297; USA2227; P291-3554RS; 620762; 620764; 4JR0535; PRCD355; 3GR0535; TRCD355; TRCFD355; PRCD355A; PRCFD355A; 12783; 12283; 12266; RC0102; RC030; TT-CAP-35/5/440R; P291-3553R; HC98KA036; HC98KA036D; HC98JA036; HC98JA036D; HC98CA035; HCKS350D050R440Z; B9457-5400; cap050350440rt; CAP050350440CS; CAP050350440RTS; CAP050350440RTP; CAP050350440CT; CAP050350440RSP; CAP050350; R100335-05; 100335-05; 89M73; DAL-M4DJ0535; M4DJ0535; 4DJ0535; CPT00694; CPT0694; CPT-0694; CPT00977; CPT0977; CPT-0977; CPT00837; CPT0837; CPT-0837; CPT02134; CPT2134; CPT-2134; CPT02169; CPT2169; CPT-2169; CPT01818; CPT1818; CPT-1818; C3355; C3355R; SFCAP35D5440R; 3GR0535; 97F9834 ; 97F9834BX; 328P3505H37N31A5Z; 43-25133-35; 432513335; 43-101665-44; 4310166544; TL35053; 43TL35053R; 43-TL35053-R; 810P3505H44P37A5X ; 3-25133-35; AM355R; 4JR0545; HCKY350D050R440318Z6 ; CD35+5X440R; CD35+5X370R; cn440-3505ra
